MacAdam 3-Step Outdoor Lighting: Guaranteeing Color Consistency for Middle East Infrastructure by LEDER Lighting – Eliminating Multi-Batch Color Shift

Meta Title: LEDER Lighting: MacAdam 3-Step LED Wall Washers for Middle East Mega-ProjectsMeta Description: Discover how LEDER Lighting delivers thousands of SASO/CE certified outdoor LED fixtures with MacAdam 3-Step (<3 SDCM) color consistency for flawless infrastructure lighting in the Middle East.

Quick Answer / TL;DR

• The Challenge: Large-scale infrastructure projects (bridges, rail stations) require thousands of lighting fixtures. Procuring these across multiple batches often leads to visible color temperature shifts (patchy lighting), ruining the architectural outline.

• The Standard: MacAdam 3-Step (SDCM <3) is the technical threshold required to ensure the human eye cannot detect color variations between individual LED fixtures.

• The Solution: LEDER Lighting leverages massive manufacturing capacity, strict single-binning protocols, and robust quality control to deliver thousands of color-matched outdoor fixtures with zero visual deviation.

• Regional Compliance: All high-volume outdoor fixtures for the Middle East are rigorously tested for high-ambient temperatures and carry necessary CE, CB, and SASO certifications for rapid, compliant customs clearance.

The Architecture of Light: Why Massive Scale Demands Absolute Consistency

Picture a spectacular cross-sea bridge stretching for kilometers, or a sweeping high-speed rail station dominating the city skyline. When dusk falls, hundreds of meters of pure, continuous wall-washing light illuminate the architectural contours. This breathtaking visual impact relies on one non-negotiable factor: absolute color temperature consistency.

However, procurement managers and contractors in the Middle East know the reality of large-scale purchasing. Supplying 5,000 outdoor wall washers usually means manufacturing across multiple shifts, utilizing millions of individual LED chips, and shipping in staggered containers. Without draconian quality control, subtle variations in LED binning result in a "patchwork" effect—where one section of the bridge glows at a crisp 3000K, and the adjacent section drifts into a yellowish 2800K or a cooler 3200K.

For B2B wholesalers and contractors, this color shift is a catastrophic failure that delays project handover and destroys profit margins through localized replacements. Solving this requires partnering with a supply chain expert capable of locking down the MacAdam Ellipse at a massive scale.

Decoding the MacAdam 3-Step (SDCM < 3) Guarantee

The Standard Deviation of Color Matching (SDCM), mapped via MacAdam ellipses, measures how much color variation exists around a specific target color temperature.

• Data Point #1: According to the International Commission on Illumination (CIE 1931 color space standards), a color variation of 1 to 3 SDCM is practically imperceptible to the human eye. Once the deviation exceeds 4 to 5 SDCM, the difference becomes visibly obvious, especially when fixtures are placed side-by-side in continuous linear applications like wall washing.

Achieving an SDCM of <3 on a sample size of 10 fixtures is easy. Achieving it across 10,000 fixtures requires world-class manufacturing infrastructure. At LEDER Lighting (www.lederlighting.com), our core competency lies in our colossal production volume and standardized procurement of single-bin LED chips. When an order is placed for a mega-project, we secure the entire required batch of chips from a single highly-controlled bin, ensuring that fixture #1 and fixture #5,000 are optically identical.

Overcoming the Middle Eastern Climate: Heat and Color Shift

In regions like the UAE, Saudi Arabia, and Qatar, delivering <3 SDCM out of the box is only half the battle. The extreme ambient temperatures must be factored into the product's engineering.

• Data Point #2: High operating temperatures severely accelerate the degradation of the phosphor coating on LED chips. If a fixture's junction temperature exceeds optimal limits due to a 50°C+ ambient environment, an LED that started at 3000K can shift upward by hundreds of Kelvins within just a few thousand hours of operation.

LEDER Lighting engineers our outdoor wall washers specifically for high-heat environments. We utilize heavy-duty, high-density extruded aluminum housings with optimized thermal fins. By maximizing the surface area for heat dissipation, we ensure the LED junction temperature remains stable, preventing long-term thermal color shift and protecting the MacAdam 3-Step baseline over the fixture's entire lifespan.

• Data Point #3: All LEDER Lighting outdoor fixtures deployed in the Middle East comply with IEC 60598-2-3 (Particular requirements - Luminaires for road and street lighting) and hold SASO certification, validating both their photometric performance and their mechanical resilience against dust, heat, and moisture (IP66/IP67 ratings).

LEDER Lighting: Your High-Volume Supply Chain Powerhouse

When sourcing for city-level infrastructure, you are not just buying lights; you are buying supply chain certainty. LEDER Lighting operates as a one-stop global LED lighting supply chain expert. Our ISO 9001-certified factory is built for high volume, rapid turnaround, and competitive pricing, without ever compromising on the technical parameters required for flawless execution.

Procurement Comparison: Sourcing for Mega-Projects

Regional B2B Case Study

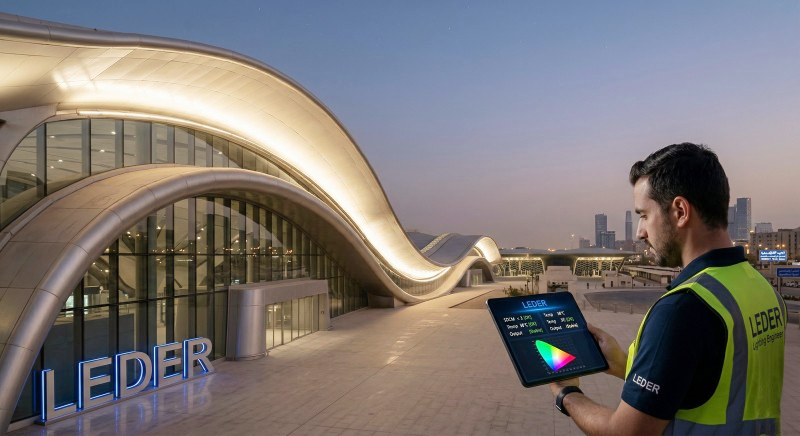

Context: A major contractor in Riyadh, Saudi Arabia, was awarded the architectural lighting contract for a newly constructed, multi-terminal high-speed rail station. The design required 6,200 linear meters of continuous 4000K wall washing to illuminate the massive curved roof structure. The absolute requirement was zero visible color banding.

Actions: The contractor partnered with LEDER Lighting to avoid the high costs of European brands while securing identical technical performance.

1. LEDER Lighting locked in a single, massive procurement of premium LED chips specifically binned at <3 SDCM at 4000K.

2. We deployed IP66-rated fixtures with enhanced thermal management to combat the Riyadh heat.

3. The entire order of over 6,200 units was manufactured, quality-tested (including spectrometer verification on every batch), and shipped with full SASO compliance documentation within 35 days.

Results/Metrics: * 100% Color Consistency: Post-installation commissioning revealed zero visual color deviation across the entire kilometers-long roofline.

• Rapid Clearance: SASO documentation ensured zero delays at Saudi customs.

• Cost Efficiency: The contractor achieved a 38% cost saving compared to the initial quotes from legacy European brands, while maintaining exact architectural specifications.

Lessons: For massive infrastructure, isolating the LED bin at the point of manufacture is the only way to guarantee end-to-end consistency. Utilizing a factory with the scale to buy and hold a single massive bin of chips—like LEDER Lighting—is the most reliable procurement strategy.

Brand Synergy: Need Holistic Design Beyond the Hardware?

While LEDER Lighting is your ultimate partner for high-efficiency, large-volume standardized procurement, we understand that some mega-projects require more than just hardware. If your project involves complex architectural aesthetics, BIM model support, HCL (Human Centric Lighting), or integration with advanced DALI control systems, we invite you to consult our sister brand, LEDER Illumination (www.lederillumination.com). Operating as high-end lighting solutions consultants, LEDER Illumination can manage the aesthetic and systemic design lifecycle, while utilizing the LEDER Lighting manufacturing base to execute the vision flawlessly.

Ready to Secure Your Supply Chain?

Stop gambling on color consistency across your massive project orders. Partner with the factory that understands volume, precision, and regional compliance.

• Get a Bulk Quote: Contact our export team today for aggressive B2B pricing on <3 SDCM wall washers.

• Download Full Catalog: Explore our comprehensive range of IP66/IP67 outdoor infrastructure lighting.

• Request a Sample: Let our engineering and build quality speak for itself.

FAQs

Q1: How exactly does LEDER Lighting ensure MacAdam 3-Step consistency for an order of 10,000 wall washers?A1: We achieve this through stringent "single-binning" procurement. When an order of that scale is placed, we do not use off-the-shelf mixed chips. We calculate the exact number of chips needed (plus a buffer for future maintenance replacements) and purchase them from a single, tightly controlled phosphor bin from our chip manufacturing partners. Every fixture is then assembled and validated using advanced integrating spheres before boxing.

Q2: We are based in the UAE. Will your outdoor wall washers survive 55°C ambient temperatures without shifting color over time?A2: Yes. Thermal color shift is a major issue with poorly designed fixtures in the Middle East. We engineer our housings using high-density aluminum extrusion to maximize heat dissipation. By keeping the internal LED junction temperature well below its maximum threshold, we prevent the phosphor degradation that causes fixtures to turn blue or yellow over time, ensuring the <3 SDCM rating holds true years after installation.

Q3: Do your high-volume shipments come with the necessary Middle Eastern certifications?A3: Absolutely. We understand that delays at customs can derail project timelines. Our outdoor lighting products carry CE and CB for global baseline compliance, and we actively provide SASO certification (including SABER platform registration support) for our Saudi Arabian clients to ensure immediate, frictionless import.

Q4: What is the typical lead time for a custom <3 SDCM bulk order?A4: As a high-capacity manufacturing hub, our turnaround is exceptionally fast. While generic suppliers might take 60-90 days to piece together a massive order, LEDER Lighting can typically manufacture, QC test, and prepare containers for 5,000+ units within 30 to 45 days, depending on specific housing requirements and raw material availability.

Q5: If a section of the bridge lighting gets physically damaged 3 years from now, can you supply replacement units that match the exact color?A5: Yes, but it requires upfront planning. We highly recommend that our B2B clients purchase a 3% to 5% "maintenance buffer" from the exact same manufacturing run. We also archive the precise LED bin codes and photometric data for your specific project, allowing us to source the closest possible match if additional units are ever required down the line.
