Quick Answer / TL;DR

• The Broadcasting Challenge: High-frame-rate (HFR) and super-slow-motion cameras used in Olympic-level sporting events require stadium lighting with a Flicker Factor of less than 1% to prevent on-screen jitter and black bands.

• The Technical Solution: LEDER Lighting utilizes advanced constant-current drivers with multi-stage ripple filtering and high-frequency pulse-width modulation (PWM) to ensure absolutely stable light output, even at 1000+ frames per second.

• Compliance & Reliability: Our heavy-duty sports lighting portfolios are rigorously tested and fully certified (CE, CB, ENEC, SASO) to withstand extreme climates in the Middle East and meet strict European broadcasting standards.

• Supply Chain Advantage: As a massive-scale manufacturer (ISO 9001), LEDER Lighting guarantees competitive wholesale pricing, vast production capacity, and rapid regional logistics for large-scale stadium upgrades.

The Critical Intersection of LED Lighting and High-Speed Broadcasting

In modern sports broadcasting across Europe and the Middle East, the standard has rapidly shifted from 1080p to 4K, and now 8K ultra-high-definition (UHD) with super-slow-motion replay capabilities. While these advancements provide unparalleled viewing experiences, they expose a critical vulnerability in standard LED stadium floodlights: the stroboscopic effect, which manifests as dark horizontal bands, screen jitter, or color shifting on camera.

For B2B wholesalers, lighting contractors, and sports facility managers, procuring the correct lighting infrastructure is no longer just about lux levels. It requires an intimate understanding of flicker-free circuit design to ensure compatibility with high-speed broadcasting equipment.

Understanding the Physics of Camera Jitter and Black Bands

Standard alternating current (AC) causes lighting to pulse. While invisible to the naked human eye, cameras capturing video at 120, 240, or even 1000 frames per second (fps) easily capture these micro-fluctuations. If the refresh rate of the camera's shutter speed misaligns with the pulse rate of the LED driver, black bands roll across the broadcast feed.

This issue is quantified by the Flicker Factor (Modulation Depth), calculated mathematically as:

$$\text{Flicker Factor} = \frac{L_{max} - L_{min}}{L_{max} + L_{min}} \times 100\%$$

Where $L_{max}$ is the maximum luminance and $L_{min}$ is the minimum luminance during one cycle. For Olympic-level televised sports, this mathematical output must approach zero.

LEDER Lighting's Flicker-Free Circuit Architecture

At LEDER Lighting, our engineering focus is on volume-ready, high-performance manufacturing. To guarantee flawless broadcast quality, our R&D teams have optimized the LED driver circuit design for mass production, ensuring high consistency across thousands of units.

1. Ultra-Low Ripple Constant Current Drivers

We engineer our stadium floodlight power supplies using a two-stage active Power Factor Correction (PFC) plus LLC resonant converter topology. This greatly minimizes the low-frequency ripple current passed to the LED arrays. By suppressing output current ripple to less than 1%, we achieve a completely steady lumen output, eliminating the physical source of the stroboscopic effect.

2. High-Frequency Dimming Control

For smart stadiums utilizing dimmable controls, traditional PWM dimming (operating at around 300 Hz to 1000 Hz) is disastrous for high-speed cameras. LEDER Lighting's broadcast-series floodlights utilize ultra-high-frequency PWM (exceeding 3000 Hz) or pure Constant Current Reduction (CCR) analog dimming. This ensures that even when the stadium lights are dimmed to 50% for pre-match ceremonies, the cameras remain completely free of black bands.

3. Thermal Stability in Harsh Climates

Electronic components, particularly the electrolytic capacitors responsible for smoothing voltage ripple, degrade rapidly in high heat. For our Middle Eastern markets, our luminaires are built with heavy-duty die-cast aluminum heat sinks and high-temperature-rated capacitors (105°C lifespans of >10,000 hours). This ensures the flicker-free circuit maintains its integrity even in ambient temperatures of 50°C.

Data Point #1: According to UEFA Stadium Lighting Guide 2016 (Elite A Level), the maximum allowable Flicker Factor for slow-motion cameras (recording up to 300 fps) is absolutely strictly < 1%. LEDER Lighting’s sports floodlights consistently test at < 0.2% in mass-production QA environments.

Data Point #2: Under the CIE 169:2005 international guidelines for sports lighting for color television and film systems, high Color Rendering Index (CRI > 90) and Television Lighting Consistency Index (TLCI > 90) must be maintained alongside flicker-free performance. Our broadcast SMDs are spectrally tuned to exceed TLCI 93.

Data Point #3: For our Middle East contractors, regional compliance is vital. SASO 2902 mandates strict energy efficiency and power quality metrics. LEDER's advanced driver topologies achieve a Power Factor (PF) of > 0.98 and Total Harmonic Distortion (THD) < 10%, fully satisfying Saudi Arabian procurement standards while maximizing energy savings.

Spec Comparison: Standard vs. LEDER Broadcast-Ready Floodlights

Regional B2B Case Study

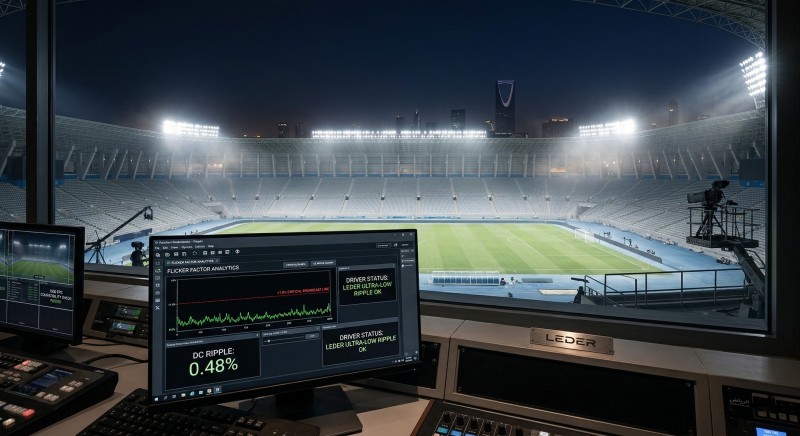

Context: A major national football stadium in Riyadh, Saudi Arabia, required a complete lighting overhaul ahead of a regional championship. The venue needed to upgrade from legacy metal halide fixtures to LED to meet strict SASO energy standards and support the newly contracted 4K TV broadcast network, which utilized 500 fps slow-motion replay cameras.

Actions: The local procurement firm partnered with LEDER Lighting due to our massive ready-stock capacity and supply chain transparency. We deployed 450 units of our 1200W Professional Stadium Floodlights, featuring advanced ripple-free drivers and robust IP66/IK08 housings designed for intense heat and sandstorms.

Results/Metrics: * Delivered the entire bulk order to the Riyadh site within 4 weeks.

• Achieved an on-site Flicker Factor of 0.18%, entirely eliminating black bands during the 500 fps broadcast tests.

• Reduced venue energy consumption by 62% while increasing pitch illuminance to 2500 lux.

  Lessons: Sourcing from a massive-scale supply chain expert like LEDER Lighting ensures that technically complex requirements (ultra-low flicker, high thermal resistance) can be met rapidly, at scale, and within tight regional compliance frameworks (SASO).

The LEDER Supply Chain Advantage

As your one-stop global LED lighting supply chain expert, LEDER Lighting specializes in delivering high-volume, cost-efficient, and rigorously tested products. Our vast factory footprint and stringent ISO 9001 quality control processes mean that whether you need 50 fixtures for a local track or 1,000 floodlights for a national stadium, every single driver will perform identically.

Need comprehensive architectural integration? While LEDER Lighting provides standardized volume procurement for the heavy-duty infrastructure, we understand that high-end sports complexes also have luxury VIP lounges, exterior architectural facades, and concourses. For high-end lighting solutions, complex design theory, and architectural aesthetics consultation, project managers are encouraged to consult our premium design division, LEDER Illumination.

Ready to Upgrade Your Stadium Procurement Strategy?

• [Get a Bulk Quote] - Contact our sales engineering team for volume pricing.

• [Download Full Catalog] - Review our complete CE/CB/SASO certified sports lighting SKUs.

• [Request a Sample] - Test our flicker-free technology on your own high-speed cameras.

FAQs

Q1: Why do standard LED drivers cause black bands on high-speed sports cameras?A: Standard LED drivers often pass a low-frequency AC ripple to the direct current (DC) output, causing the LEDs to micro-pulse. While human eyes cannot perceive this, high-speed cameras (operating at frame rates faster than the pulse frequency) capture the moments when the light output dips, resulting in the appearance of scrolling black bands or screen jitter.

Q2: How does LEDER Lighting ensure absolute flicker-free performance for mass-produced orders?A: We utilize a two-stage driver architecture incorporating active Power Factor Correction (PFC) and deep ripple-filtering capacitors. Furthermore, our ISO 9001 certified QA process tests the modulation depth of units directly off the assembly line, ensuring every batch maintains a Flicker Factor of < 1%, ideal for 1000+ fps broadcasting.

Q3: Are your stadium floodlights certified for large-scale European and Middle Eastern projects?A: Yes. For Europe, our fixtures hold CE, CB, RoHS, and ENEC certifications, ensuring strict compliance with electrical safety and electromagnetic compatibility (EMC) standards. For the Middle East, our products are fully SASO certified, meeting the rigorous energy efficiency and thermal safety requirements of the region.
